Feeders, DC voltage/speed Regulators

Request informationCancel request

  • *
  • *
  • *
  • I accept the privacy policy. In compliance with EU Regulation 2016/679, we inform you that your data will be entered into our database and used in accordance with our Privacy Policy. The information on this can be consulted click here. By submitting this form, you therefore consent to the processing of personal data by Rowan Elettronica S.r.l.

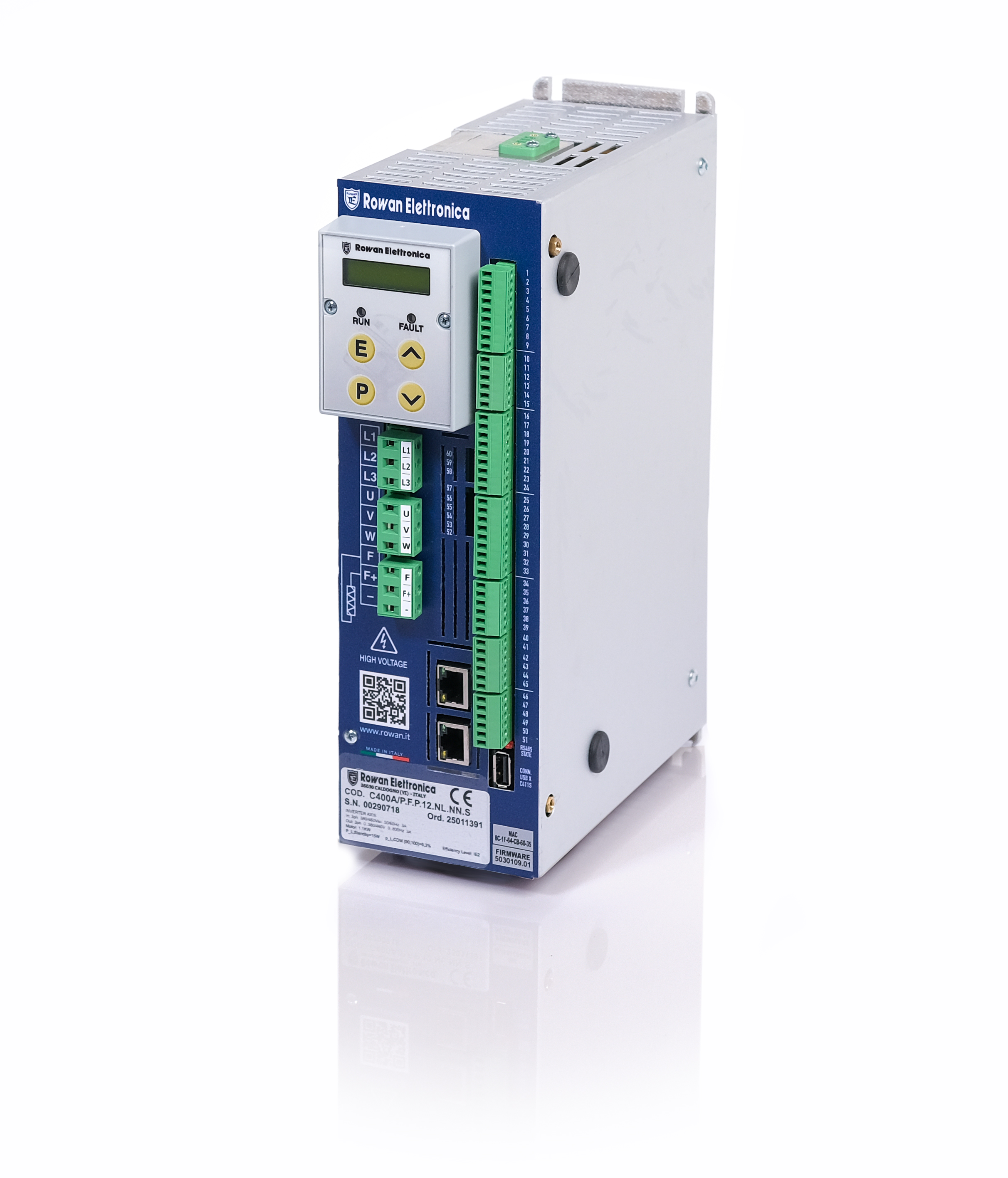

600S SERIES
PWM digital power supply for DC loads from 5A to 500A - AC power supply, single-phase and three-phase 230 ÷ 460Vac 50/60Hz - DC: 200Vdc ÷ 20/200 ÷ 650Vdc. Presence of keypad for parameter setting and control + serial port.

415 SERIES
semi-controlled bridge SCR drive: input 170÷460 VAC three-phase, output 0÷440 VDC.

319S SERIES
switching power supply stabilized: input 24VAC, output 24VDC, 3A, 5A, 8A (ventilated), protected from short-circuit, DIN guide fixing.

107S SERIES
monodirectional SCR driver for DC motors, also for motors with separate excitation: input 230VAC, output 0÷170VDC - 6A, 12A, 18A.

201S SERIES
DC power supply / charger: input 220/380 VAC, output 12/24 VDC,  voltage/current feedback, from 10A to 100A.

210 SERIES
Brake / Clutch static power supply: 2 inputs (24VAC and 55VAC), 2 outputs 30VDC - 2A, one with 70VDC over-impulse.

273S SERIES
bidirectional PWM driver for DC motors: input 24VAC, output 0÷24 VDC - 3A  bidirectional.

273S/1 /2 SERIES
bidirectional PWM driver for DC motors: input 19÷40 VAC - 22÷60 VDC, output 0÷24/48 VDC - 6A, 9A

273S/3 /4 /5 SERIES
bidirectional PWM driver for DC motors: input 19÷40 VAC - 22÷60 VDC, output 0÷24/48 VDC - 20A, 40A, 70A

273P SERIES
bidirectional PWM driver for proportional electro-valves: input 24VDC, output 3A for 100Hz-200Hz.

287S SERIES
monodirectional PWM driver for DC motors: input 24/48 VAC, output 0÷24/48 VDC from 3A to 60A in duty cycle.

287P SERIES
monodirectional PWM driver for DC motors: input 24/48/96 VDC from battery, output 100-150A in duty cycle.

321S SERIES
static power supply for brake motors with over-impuls: input 24VAC, output 24VDC max 3A with 37VDC over-impulse (feeder for Motor brake), DIN guide fixing.

CUSTOMIZATIONS on REQUEST

Images

  • 107S SERIES

    107S SERIES

  • 201S SERIES

    201S SERIES

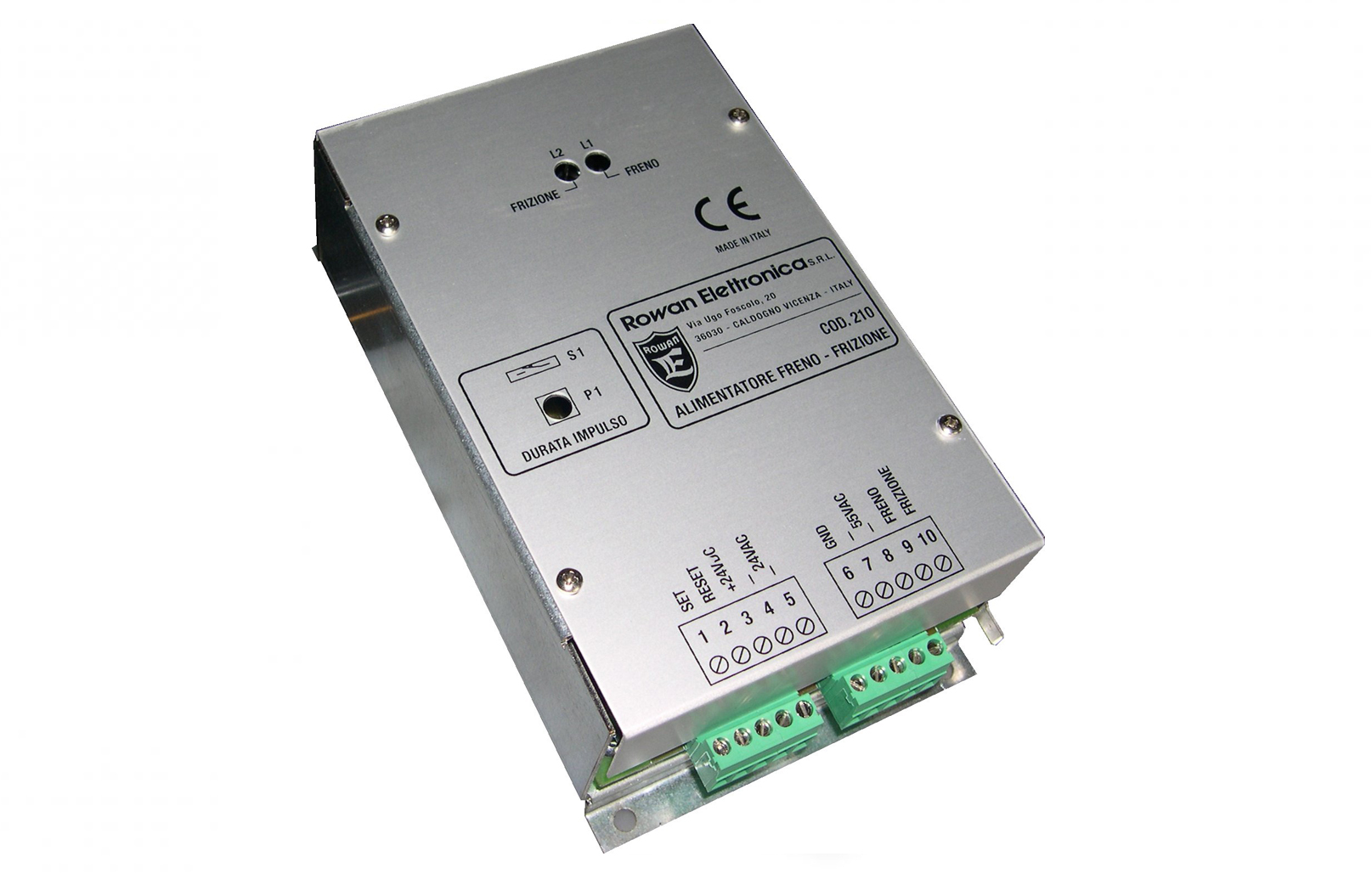

  • 210 SERIES

    210 SERIES

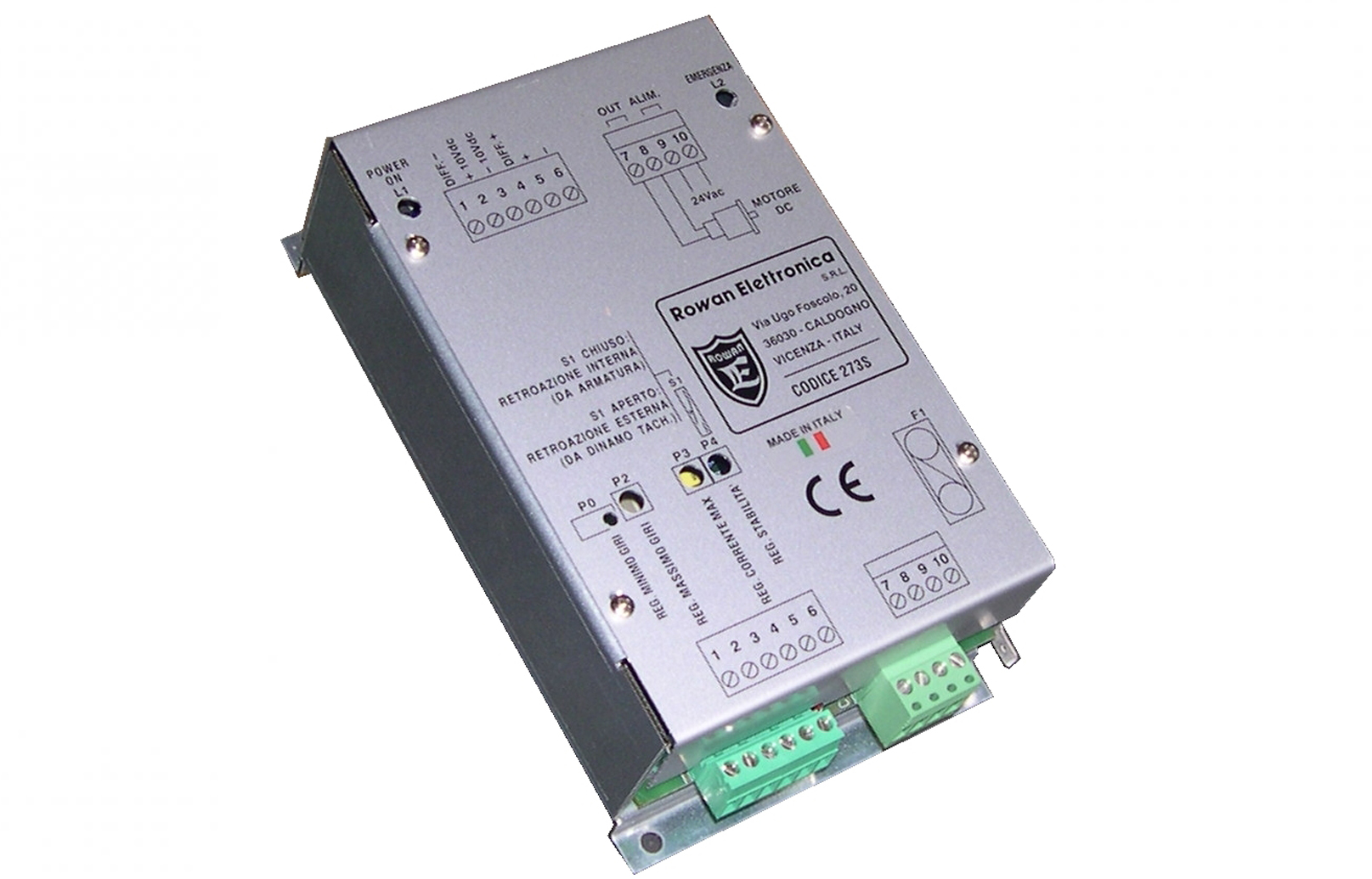

  • 273S SERIES

    273S SERIES

  • 273S/1, /2, /3, /4, /5 SERIES

    273S/1, /2, /3, /4, /5 SERIES

  • 273P SERIES

    273P SERIES

  • 287S SERIES

    287S SERIES

  • 287P SERIES

    287P SERIES

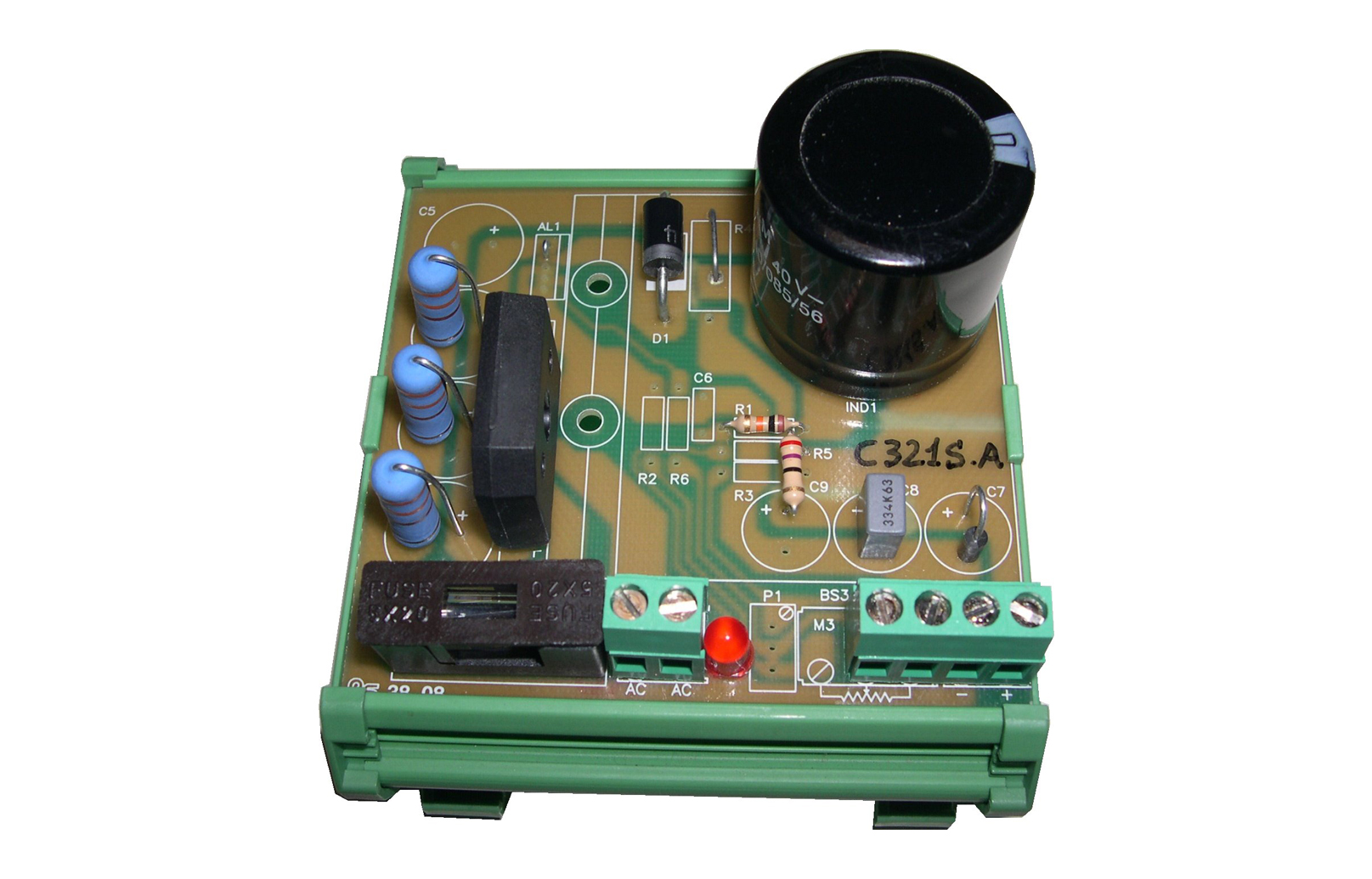

  • 321S SERIES

    321S SERIES

  • 319S SERIES

    319S SERIES
